Grand Coulee Dam - Hydroelectric Project Information

General Information

Dam:
Grand Coulee Dam. Columbia River. River Mile 596.6
Constructed:
1942; modified in 1974, 1982, and 1984
Owner:
U.S. Bureau of Reclamation
Normal Full Pool:
1290.0 feet
Normal Minimum Pool:
1208.0 feet
Powerhouse Capacity:
Nameplate capacity1: 18 @ 125 MW, 3 @ 600 MW, 3 @ 805 MW, 6465 MW total
Station service units: 3 @ 10 MW, 30 MW total
Pump/Generator units1: 2 @ 50.0 MW, 4 @ 53.5 314 MW total
Hydraulic capacity: 280 kcfs
Spillway:
11 Drum Gates, 40 Outlet Tubes (2 gates each outlet)

1 From U.S. Bureau of Reclamation, Grand Coulee Powerplants page.

Additional Information

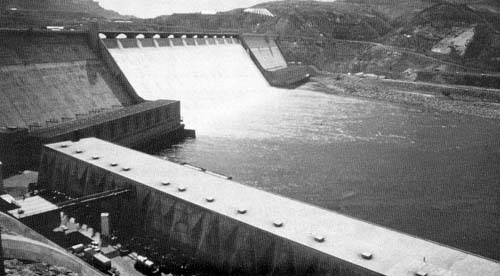

Grand Coulee Dam image
