DART PIT Tag Adult Reach Distribution and Delay Overview

The DART PIT Tag Adult Reach Distribution and Delay analysis presents daily departure-date cohort calculations to help elucidate the more numerous visual count adult population movement patterns. Actual pre-season and in-season management decision processes are complex employing multiple sources of observed data, models, and forecasts.

Methods

On a daily basis, the DART database loads current PTAGIS, Smolt Index, River Conditions, and Adult Visual Counts datasets from primary sources.

Three populations based on release attributes are tracked separately for analysis.

Spring/Summer Chinook, juveniles released at/above Lower Granite, includes Unknown-run tagged at Lower Granite in April and May in same year as release. Tracked for spring spill period at Snake River dams, April 3 - June 20 and adult visual counts spring/summer run dates, April - August.
Spring/Summer Chinook, juveniles released at/above McNary. Tracked for spring spill period at mainstem Columbia River dams, April 10 - June 15.
Fall Chinook, juveniles released at/above Lower Granite, includes Unknown-run tagged at Lower Granite after June in same year as release and Unknown-run tagged by coord_id "WPC". Tracked adult visual count fall run dates, August - November.

For each unique Tag Id detected at the lower project as life stage adult, individual coil detections are examined to establish movement maps through the ladders and determine departure dates (may be more than one). Tag Ids are grouped by departure date into a daily cohort and each departure-date cohort is tracked separately for reach travel time, conversion rate, and arrival. Fallback, delay, wander, harvest, and/or mortality may result in <100% daily cohort conversion rate; fallback, wander, harvest and mortality are not included in these analyses. The PIT Tag population as a whole is tracked by unique Tag Id for YTD calculations of harmonic mean reach travel time and conversion rate.

On a date-specific basis, a unique population departing the lower project is established. Ascent events are not restricted to calendar date. This date-specific unique population is tracked to determine cumulative arrival percent at the upper project, harmonic mean TT, and conversion rate. A history of more than 1 ascent event for a TagID is tracked. This may impact arrival success and travel time.

Additional notes:

Adult Visual Counts presented are the daily sum of adult and jack counts.
Analysis for the year may be incomplete if viewing current calendar year results. YTD and Daily statistics may change and update as the year progresses.
Running 3 Day calculations requires a minimum 7 fish departing during each 3 day period.
Upper Project 50% Entry Hour requires a minimum 5 fish arriving on each date.

Criteria

Potential Delay alerts and shading of table cells are based on criteria set by population and reach. Potential Delay Alert: Cumulative Arrival Percent is less than criteria setting by "Average" calendar days after departure to Arrive.

Criteria used in Daily and Running 3 Day Cohort Analysis of Reach Distribution and Travel Time.

Alert Criteria for Spring/Summer Chinook, juveniles released at/above Lower Granite, includes Unknown-run tagged at LWG in April and May in same year as release
Lower Project	Upper Project	Date Range	Number of Reaches	Conversion Rate	Cumulative Arrival Percent	"Average" calendar days after departure to Arrive
Bonneville	Lower Granite	4/3-6/20	7	65%	40%	15
Bonneville	McNary	4/3-6/20	3	70%	40%	7
Bonneville	The Dalles	4/3-6/20	1	80%	45%	3
The Dalles	McNary	4/3-6/20	2	80%	45%	4
The Dalles	John Day	4/3-6/20	1	80%	45%	2
John Day	McNary	4/3-6/20	1	85%	50%	3
Ice Harbor	Lower Granite	4/3-6/20	3	85%	50%	6
Ice Harbor	Little Goose	4/3-6/20	2	85%	50%	4
Ice Harbor	Lower Monumental	4/3-6/20	1	85%	50%	2
Lower Monumental	Lower Granite	4/3-6/20	2	85%	50%	4
Lower Monumental	Little Goose	4/3-6/20	1	85%	50%	2
Little Goose	Lower Granite	4/3-6/20	1	85%	50%	2

Figures

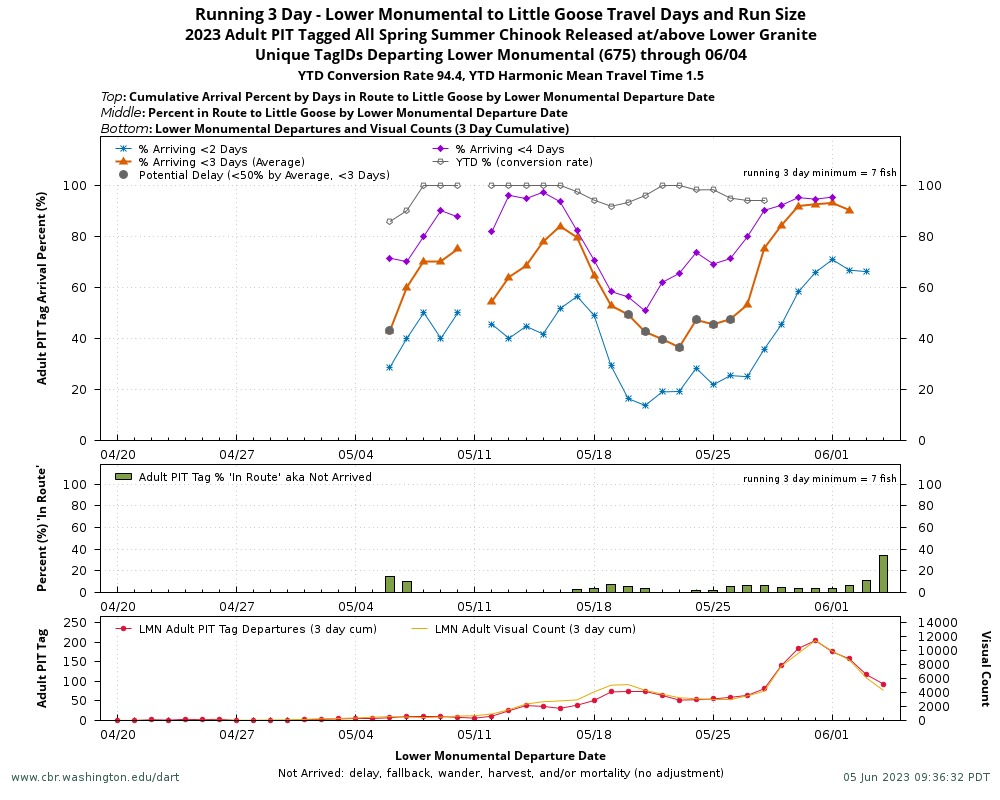

Running 3 Day Travel Days and Run Size

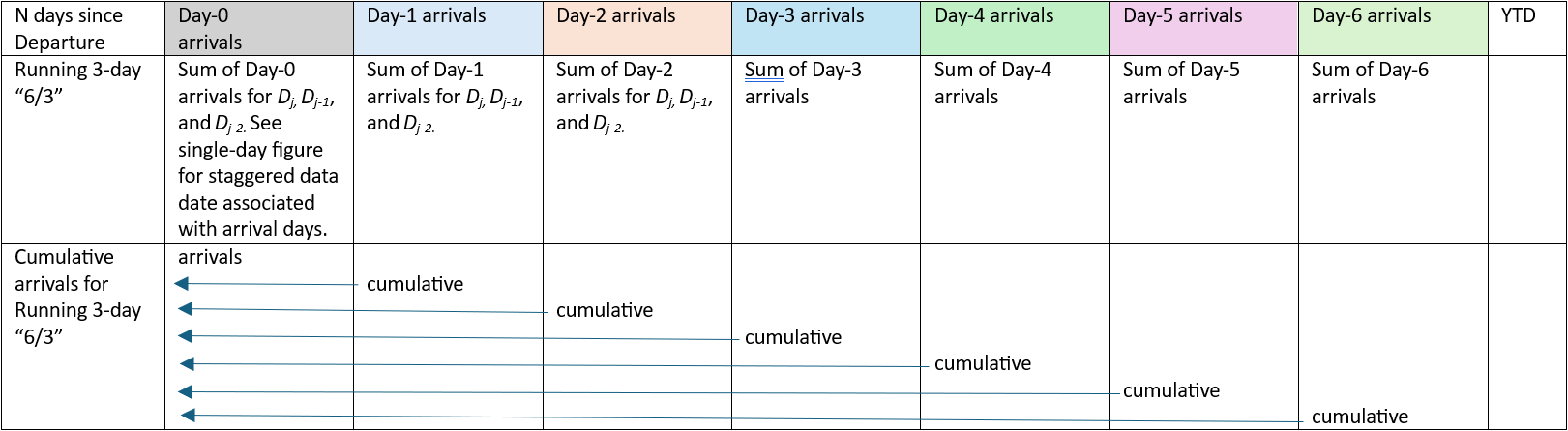

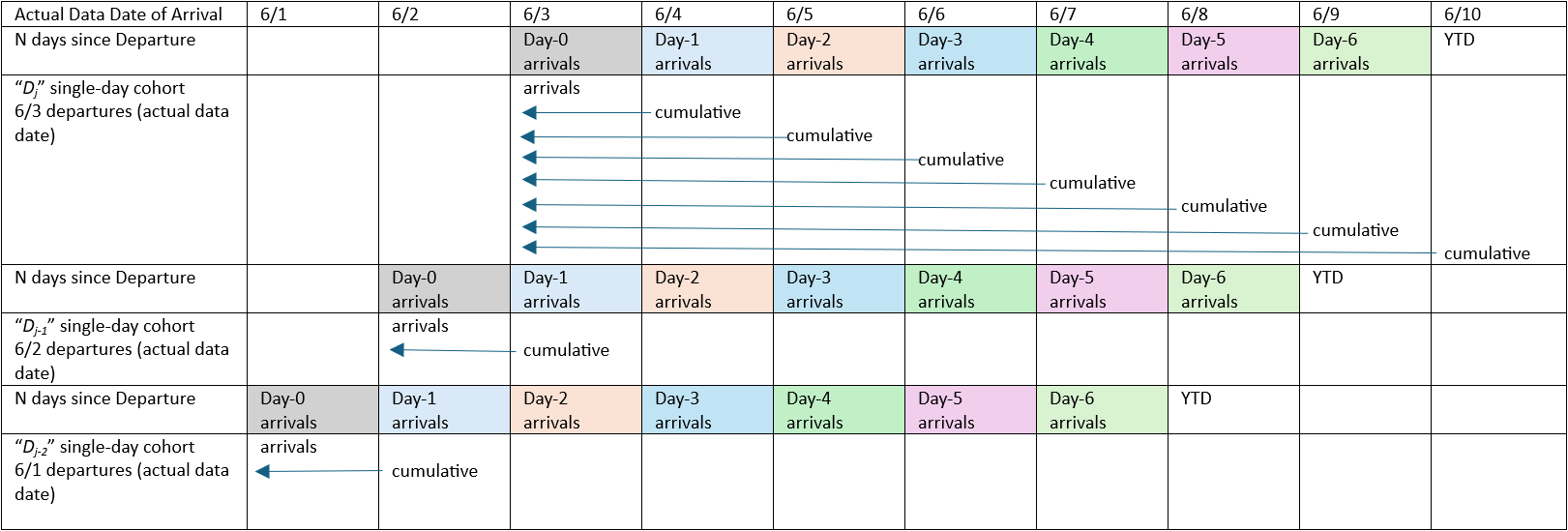

Top: Daily analysis is smoothed by creating running 3-day calculations. The stacked Running 3 Day plot shows the cumulative arrival percent by days to arrive for each 3-day departure cohort.

Potential delay conditions are highlighted by filled gray dots; the criteria for potential delay is that the Cumulative Arrival Percent of the 3-day cohort is less than the arrival percent criterion value by the "Average" travel days. The average travel days and arrival percent criterion are based on historical observations for each reach and population.
The orange triangles represent the cumulative arrival percent by the "Average" travel day.
Cumulative arrival percent for one day prior (blue stars) and one day after (purple diamonds) the average are presented for boundaries around the average day; the boundary days can highlight movement trends for the cohort.
The gray pentagons represent the slow and final arrival percent which accumulates over the calendar year (conversion rate). Slow is defined as 5 or more days after "Average".

Middle: Percent of fish ‘In Route‘ for each running 3-day cohort; complementary/inverse plot to the arrival YTD% (conversion rate) presented in top plot. Percent ‘In Route‘ is reported immediately for the cohort. Note: Delay, fallback, wander, harvest, and mortality can all contribute to YTD Conversion Rate never reaching 100% and Percent 'In Route' never reaching 0%.

Bottom: Running 3-day PIT Tag departures plotted with running 3-day Adult Visual Counts for visual comparison of reach entry of the two data types.

example Running 3 Day Travel Days and Run Size graph

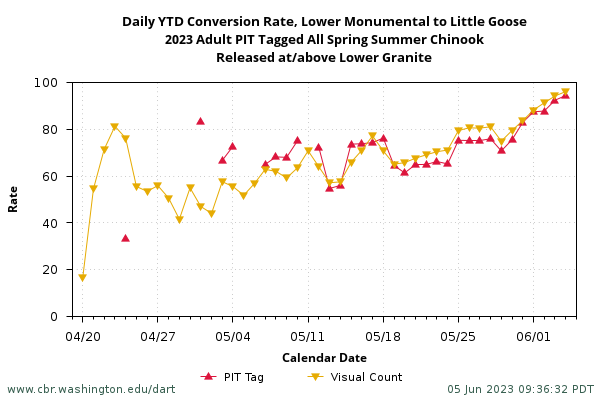

Daily YTD Conversion Rate

Daily Year-to-Date (YTD) Conversion Rate for Adult PIT Tag and Adult Visual Count datasets. Visual comparison of trends between the two datasets. For each calendar day, the YTD Conversion Rate is calculated based on cumulative number of fish to date at the lower project and the cumulative number of fish to date at the upper project. There is no adjustment for travel time or harvest in these calculations.

Daily YTD Conversion Rate = cumulative total fish at upper to date / cumulative total fish at lower to date

example Daily Year-to-Date (YTD) Conversion Rate graph

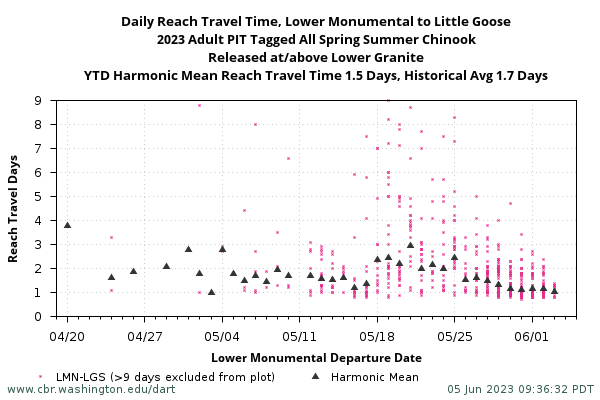

Daily Reach Travel Time

Adult PIT Tag Daily Reach Travel Time with Harmonic Mean Reach Travel Time for cohorts grouped by lower project departure date.

Harmonic Mean Travel Time = number of unique fish detected at the detection site / ( (1/reach travel time) )

When dealing with travel times, we are primarily interested in the speed with which fish travel from point A to point B. The harmonic mean is a good statistic for describing a particular group's speed. A harmonic mean is used when working with rates of speed, usually the number of days to travel a set distance. A benefit to using the harmonic mean is that it is more robust in the presence of outliers (i.e., a very fast or slow fish).

YTD Harmonic Mean Travel Time and Historical Average Reach Travel Time are presented as well.

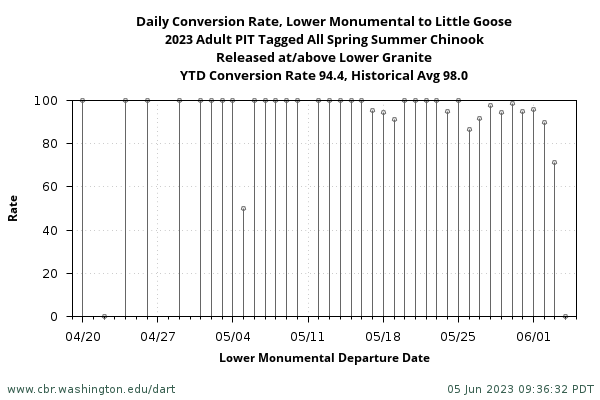

Daily Conversion Rate

Daily Conversion Rate for Adult PIT Tag population grouped and tracked by lower project departure date within the selected period.

Departure Date Conversion Rate = total number of arrivals for fish based on Tag ID that departed lower project on date / total number of departures (not unique Tag ID) on date

Arrivals for all departure dates are updated daily throughout the year as fish arrive at the upper project. There is no date restriction on when the fish must arrive for inclusion. YTD Conversion Rate is calculated for unique Tag IDs.

Note: Delay, fallback, wander, harvest, and mortality can all contribute to daily and YTD Conversion Rate never reaching 100%.

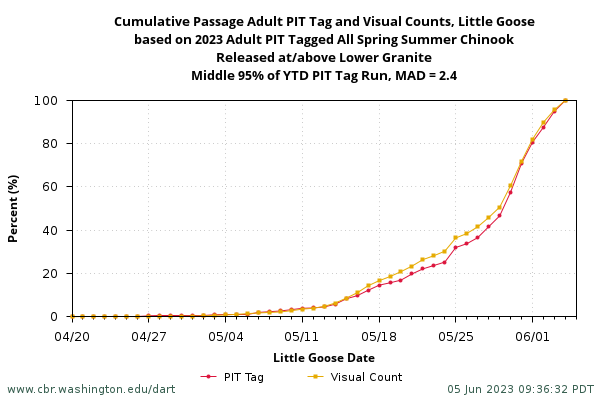

Cumulative Passage at the upper project for Adult PIT Tag and Adult Visual Counts

Cumulative Passage at the upper project for Adult PIT Tag and Adult Visual Counts is presented at the end of the season for movement comparison of the two datasets. Cumulative passage percent is calculated for both Adult PIT Tag (PIT) and Adult Visual Count (VC) populations at the upper project. To compare the cumulative passage of both datasets, MAD (mean absolute difference) is calculated for the middle 95% of the YTD Adult PIT Tag passage at the upper project. For each day in the middle 95% of the Adult PIT Tag run, mean absolute difference (MAD_j) is calculated and summed and the number of days is tallied.

MAD_season = (|(cumPassagePIT_j - cumPassageVC_j)| )/ number of days

example Cumulative Passage at the upper project for Adult PIT Tag and Adult Visual Counts graph

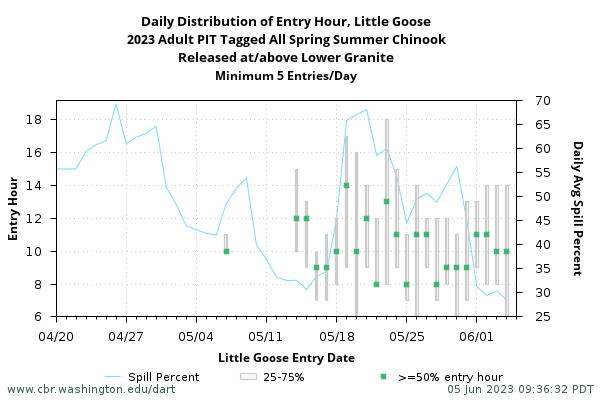

Daily Distribution of Entry Hour at upper project

Daily Entry Hour Distribution of Adult PIT Tag population and Spill Percent at the upper project, by calendar date. Arrivals at the upper project are tracked on a daily basis for entry hour. For each day's population, the distribution of entry hour is calculated for the hour when 25%, 50%, and 75% have entered. There is a required minimum of 5 entries/day set for calculations.

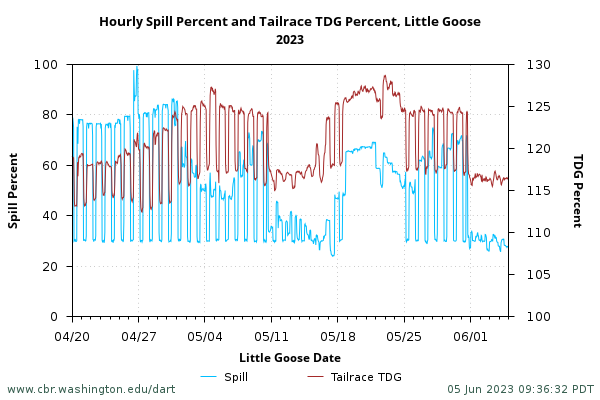

Hourly Spill Percent and Tailrace TDG Percent

Hourly Spill Percent and Tailrace TDG Percent for the upper project queried from the DART database.

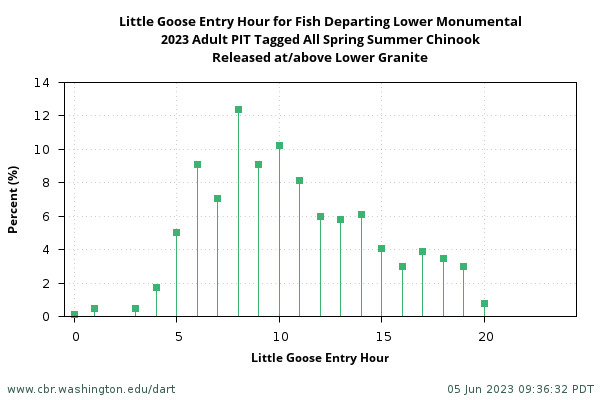

Upper Project Entry Hour

Entry hour distribution for Adult PIT Tag at the upper project for the whole period.

Glossary

The following are presented in the daily table (Daily Fish & Water) with a subset presented in the Running 3 Day table and in plots. The majority of analysis presented is tracked by departure date.

Adult PIT Tag Data for Fish Departing [lower], grouped by Departure Date

Departure Events [lower]: Departure events
[upper] Entry Events for Fish departing [lower]: Number of arrivals
Unique TagIDs [lower]: Unique Tag IDs in cohort. A difference between unique TagIDs and Departure Events indicates that 1 or more fish had a repeat ascent for the same date.
Fish departing [lower] on date with history of >1 ascents: Number of Tag IDs departing with multiple ascents, either on that date or prior dates.
%Fish departing [lower] on date with history of >1 ascents: Percent of Tag IDs departing with multiple ascents. The number departing with history >1 ascents divided by the number of Departure Events.
Cumulative Arrival Percent [upper] Calendar Days after [lower] Departure: Arrivals at upper project by calendar days after departure, which can range from 0 (fast fish in a short reach, e.g., 5/15/2018 LMN->LGS) to over 100.
- Conversion Rate: number of arrivals / number of departure events.
  There is no date restriction on arrival date at the upper project; conversion rates (daily and YTD) are updated throughout the calendar year.
Note: Delay, fallback, wander, harvest, and/or mortality can all contribute to daily and YTD Conversion Rate never reaching 100% and percent 'in route' never reaching 0%
Harmonic Mean Reach TT (travel time)
- number of unique fish detected at the detection site / ( (1/reach travel time) )
When dealing with travel times, we are primarily interested in the speed with which fish travel from point A to point B. The harmonic mean is a good statistic for describing a particular group's speed. A harmonic mean is used when working with rates of speed, usually the number of days to travel a set distance. A benefit to using the harmonic mean is that it is more robust in the presence of outliers (i.e., a very fast or slow fish).
Percent Not Arrived for period: Percent 'in route' (plot and running 3 day table).
- (departure events - number of arrivals) / departure events

There are several additional parameters that are tracked and presented by calendar date.

Other Data by Calendar Date

Unique TagIDs Entry [upper] on calendar date for Fish departing [lower] during Period: Number of unique Tag IDs at upper project of the query-qualifying Tag IDs. This is the arrival distribution of the run as whole at the upper project by calendar date.
Adult Visual Counts: Adult visual counts for lower and upper projects.
MAD Adult PIT Tag and Visual Counts Cumulative Arrival % [upper] Cumulative Passage at the upper project for Adult PIT Tag and Adult Visual Counts is presented at the end of the season for movement comparison of the two datasets. Cumulative passage percent is calculated for both Adult PIT Tag (PIT) and Adult Visual Count (VC) populations at the upper project. To compare the cumulative passage of both datasets, MAD (mean absolute difference) is calculated for the middle 95% of the YTD Adult PIT Tag passage at the upper project. For each day in the middle 95% of the Adult PIT Tag run, mean absolute difference (MAD_j) is calculated and summed and the number of days is tallied.
- MAD_season = (|(cumPassagePIT_j - cumPassageVC_j)| )/ number of days
[upper] Hour of 50% Entry for date: Entry hour when 50% of fish for the date arrived. For some ladders and level of spill, there can be a noticeable impact on entry hour.

[upper] River Conditions: Multiple parameters of river conditions at the upper project are presented from DART database.

Daily Averaged: Outflow, Spill, Spill%, Water Temperature (°C) tailrace, TDG (total dissolved gas) percent tailrace
Min Elevation, Max Elevation (based on hourly measures)
Hourly Spill percent and TDG percent (plot only)

[lower] TDG forebay: Total dissolved gas percent in the Forebay of the lower project.

Total Smolt Index [upper]: Total smolt index at the upper project for tracking presence of juvenile passage. Smolt Index is not reported at The Dalles or Ice Harbor.

Historical Statistics

PIT Tagged Adult Reach Distribution End of Season Summary Results
2024 Results are Incomplete and not included in Average Calculations
2024 Results updated Daily: Wed Nov 20 07:31:08 2024
Reach	Year	Harmonic TT (days)	TT 90th Percentile (days)	Conversion Rate (no harvest adjustment)	MAD Middle 95% of run	Detected at Lower Project	Released Lower Snake 170601	Released Salmon 170602	Released Clearwater 170603	Released Upper Columbia 1702	Released Yakima 1703	Obs Date First	Obs Date 5 Pct	Obs Date 10 Pct	Obs Date 50 Pct	Obs Date 90 Pct	Obs Date 95 Pct
PIT Tagged Sp/Su Chinook released as Juveniles at/above McNary, Detected as Adult at Lower Project 4/10-6/15
BON-TDA	Average	2.0	median 3.3 range 2.2 - 4.7	88.6	range 2.1 - 7.2	2214.4	12.1%	28.2%	19.2%	29.7%	10.2%
	2024	1.8	2.7	92.7	3.7	2113	18.7%	24.1%	18.8%	30.6%	7.2%	04/12	04/25	04/29	05/13	06/11	06/13
	2023	2.1	3.9	89.2	4.7	2388	9.2%	26.4%	18.8%	38.7%	6.6%	04/12	04/30	05/04	05/19	06/12	06/14
	2022	2.1	3.6	88.3	3.0	2989	10.2%	30.7%	19.4%	32.6%	6.1%	04/15	04/26	04/28	05/14	06/08	06/11
	2021	1.8	2.9	91.0	6.0	1582	15.0%	29.5%	9.4%	35.9%	9.7%	04/13	04/28	04/30	05/17	06/10	06/13
	2020	2.1	3.5	89.0	7.2	1087	13.6%	24.6%	12.1%	39.0%	10.3%	04/10	04/29	05/01	05/22	06/11	06/14
	2019	2.0	3.3	87.8	3.7	1239	11.0%	23.2%	13.5%	41.4%	10.5%	04/14	05/01	05/03	05/18	06/12	06/14
	2018	2.4	4.7	84.6	4.2	1464	10.1%	27.0%	24.1%	28.3%	10.2%	04/15	05/02	05/05	05/20	06/09	06/12
	2017	2.5	4.3	83.1	3.7	1386	12.8%	25.8%	21.5%	25.2%	14.5%	04/17	05/04	05/06	05/23	06/09	06/12
	2016	1.8	2.8	89.4	4.2	2153	13.6%	31.6%	23.6%	20.9%	9.4%	04/10	04/23	04/29	05/12	06/09	06/12
	2015	1.6	2.2	90.4	3.4	3804	13.0%	35.3%	25.0%	17.4%	8.8%	04/10	04/18	04/19	05/07	06/09	06/12
	2014	2.1	3.2	87.6	2.1	3631	12.6%	31.2%	22.6%	19.1%	14.1%	04/10	04/20	04/25	05/09	06/08	06/12
	2013	2.0	3.0	93.7	2.9	2635	12.4%	25.3%	21.6%	28.0%	12.0%	04/10	04/26	04/27	05/13	06/12	06/14
BON-MCN triple reach	Average	6.2	median 9.85 range 6.9 - 13.3	82.1	range 1.3 - 9.5	2650.2	13.1%	30.0%	19.7%	26.2%	10.5%
	2024	5.6	8.9	87.6	3.7	2113	18.7%	24.1%	18.8%	30.6%	7.2%	04/12	04/25	04/29	05/13	06/11	06/13
	2023	6.2	9.6	82.9	4.1	2388	9.2%	26.4%	18.8%	38.7%	6.6%	04/12	04/30	05/04	05/19	06/12	06/14
	2022	6.3	11.8	81.2	6.7	2989	10.2%	30.7%	19.4%	32.6%	6.1%	04/15	04/26	04/28	05/14	06/08	06/11
	2021	5.7	9.0	85.3	4.5	1579	15.0%	29.4%	9.4%	36.0%	9.8%	04/13	04/28	04/30	05/17	06/10	06/13
	2020	6.5	10.3	82.0	3.7	1087	13.6%	24.6%	12.1%	39.0%	10.3%	04/10	04/29	05/01	05/22	06/11	06/14
	2019	6.1	9.3	81.4	2.1	1239	11.0%	23.2%	13.5%	41.4%	10.5%	04/14	05/01	05/03	05/18	06/12	06/14
	2018	6.7	10.5	77.2	2.3	1463	10.1%	27.0%	24.1%	28.4%	10.2%	04/15	05/02	05/05	05/20	06/09	06/12
	2017	6.6	10.3	78.5	3.9	1386	12.8%	25.8%	21.5%	25.2%	14.5%	04/17	05/04	05/06	05/23	06/09	06/12
	2016	5.4	8.2	82.5	2.8	2153	13.6%	31.6%	23.6%	20.9%	9.4%	04/10	04/23	04/29	05/12	06/09	06/12
	2015	4.9	6.9	79.9	1.8	3803	12.9%	35.3%	25.0%	17.4%	8.8%	04/10	04/18	04/19	05/07	06/09	06/12
	2014	6.1	9.2	80.3	2.6	3631	12.6%	31.2%	22.6%	19.1%	14.1%	04/10	04/20	04/25	05/09	06/08	06/12
	2013	5.9	9.6	88.0	1.6	2635	12.4%	25.3%	21.6%	28.0%	12.0%	04/10	04/26	04/27	05/13	06/12	06/14
	2012	6.5	10.1	82.4	1.4	3149	15.9%	25.2%	27.3%	22.1%	8.6%	04/12	04/24	04/30	05/13	06/07	06/12
	2011	6.9	12.3	79.2	2.1	4707	19.5%	30.5%	23.3%	14.3%	11.5%	04/12	04/28	04/30	05/12	06/10	06/12
	2010	5.5	8.2	80.9	1.8	5395	18.0%	43.7%	16.9%	8.5%	11.8%	04/10	04/15	04/17	05/04	06/02	06/07
	2009	5.8	8.8	85.9	3.5	3925	17.9%	45.1%	19.2%	5.3%	12.2%	04/10	04/26	05/01	05/15	06/09	06/12
	2008	6.7	12.2	80.2	1.3	2773	13.1%	40.2%	29.9%	7.3%	9.2%	04/10	04/20	04/26	05/13	06/09	06/12
	2007	6.5	12.0	87.3	9.5	1415	10.2%	30.3%	17.0%	31.9%	9.4%	04/11	04/19	04/24	05/19	06/12	06/14
	2006	7.2	13.3	81.8	3.2	1987	7.1%	13.7%	9.0%	56.2%	13.4%	04/13	04/30	05/02	05/13	06/12	06/14
TDA-JDA	Average	1.2	median 3 range 2.7 - 3.9	93.9	range 2.8 - 7.4	1545.5	11.6%	27.4%	16.1%	35.1%	9.4%
	2024	1.2	2.6	96.1	3.3	1964	19.9%	24.5%	18.7%	29.2%	7.1%	04/10	04/26	05/01	05/14	06/11	06/13
	2023	1.3	3.0	94.1	3.6	2060	9.6%	27.9%	17.7%	37.4%	7.1%	04/12	05/02	05/09	05/23	06/12	06/14
	2022	1.2	3.2	94.1	2.8	2593	10.2%	30.9%	19.5%	31.9%	6.3%	04/10	04/27	04/30	05/15	06/08	06/12
	2021	1.2	2.9	95.0	5.7	1438	14.7%	30.1%	10.0%	34.1%	10.6%	04/14	04/29	05/01	05/18	06/11	06/13
	2020	1.3	3.9	94.7	7.4	923	14.0%	25.1%	12.4%	37.4%	11.1%	04/13	04/30	05/03	05/21	06/10	06/13
	2019	1.2	3.0	92.7	4.8	1052	11.0%	24.2%	12.5%	40.5%	11.4%	04/20	05/04	05/06	05/20	06/12	06/14
	2018	1.2	2.7	92.7	4.6	1207	10.3%	26.3%	24.2%	29.1%	9.9%	04/12	05/05	05/07	05/23	06/10	06/12
TDA-MCN double reach	Average	3.8	median 6.1 range 4.7 - 8.0	92.3	range 1.6 - 5.8	1940.2	12.3%	28.4%	19.0%	29.1%	10.6%
	2024	3.6	6.1	95.0	2.5	1964	19.9%	24.5%	18.7%	29.2%	7.1%	04/10	04/26	05/01	05/14	06/11	06/13
	2023	3.9	6.0	92.7	3.2	2060	9.6%	27.9%	17.7%	37.4%	7.1%	04/12	05/02	05/09	05/23	06/12	06/14
	2022	4.0	8.0	92.3	4.2	2593	10.2%	30.9%	19.5%	31.9%	6.3%	04/10	04/27	04/30	05/15	06/08	06/12
	2021	3.7	6.2	93.9	4.3	1438	14.7%	30.1%	10.0%	34.1%	10.6%	04/14	04/29	05/01	05/18	06/11	06/13
	2020	4.2	7.1	92.6	5.8	923	14.0%	25.1%	12.4%	37.4%	11.1%	04/13	04/30	05/03	05/21	06/10	06/13
	2019	3.8	6.2	93.0	3.7	1052	11.0%	24.2%	12.5%	40.5%	11.4%	04/20	05/04	05/06	05/20	06/12	06/14
	2018	3.9	6.1	90.7	3.6	1207	10.3%	26.3%	24.2%	29.1%	9.9%	04/12	05/05	05/07	05/23	06/10	06/12
	2017	3.8	6.0	93.5	5.2	1141	13.8%	25.4%	20.3%	25.0%	15.1%	04/16	05/07	05/11	05/26	06/09	06/12
	2016	3.5	5.7	92.2	3.9	1901	13.8%	32.0%	22.7%	20.8%	9.7%	04/10	04/27	05/01	05/14	06/09	06/12
	2015	3.2	4.7	89.0	1.6	3516	13.1%	34.6%	25.6%	17.1%	9.0%	04/10	04/19	04/21	05/05	06/09	06/13
	2014	3.7	6.1	91.8	3.4	3143	12.2%	30.5%	22.7%	19.9%	14.3%	04/10	04/24	04/28	05/11	06/09	06/12
	2013	3.6	6.3	93.9	4.7	2368	12.9%	25.9%	21.9%	26.7%	11.9%	04/12	04/27	04/29	05/13	06/12	06/14
JDA-MCN	Average	2.4	median 3.35 range 3.3 - 4.0	97.8	range 2.7 - 7.3	1380.7	12.0%	28.3%	16.7%	33.5%	9.1%
	2024	2.3	3.3	98.2	2.6	1816	20.5%	24.3%	19.1%	28.4%	7.1%	04/13	04/28	05/03	05/15	06/11	06/13
	2023	2.3	3.3	97.6	3.3	1839	9.7%	28.5%	18.5%	35.7%	7.2%	04/14	05/05	05/11	05/24	06/12	06/14
	2022	2.5	4.0	97.4	2.7	2316	10.5%	32.0%	20.2%	29.8%	6.3%	04/15	04/29	05/01	05/16	06/07	06/11
	2021	2.3	3.3	98.9	4.9	1313	14.6%	31.1%	10.4%	33.1%	10.4%	04/10	05/01	05/02	05/18	06/11	06/13
	2020	2.5	3.7	97.4	3.0	819	14.7%	26.1%	12.9%	35.2%	11.0%	04/17	05/01	05/04	05/20	06/11	06/13
	2019	2.4	3.4	98.5	7.3	917	12.0%	25.0%	13.1%	39.4%	10.3%	04/19	05/05	05/07	05/20	06/10	06/13
	2018	2.4	3.3	96.9	5.3	1080	10.2%	26.9%	25.4%	27.9%	9.5%	04/15	05/06	05/09	05/24	06/10	06/13
PIT Tagged Sp/Su Chinook released as Juveniles at/above Lower Granite with Unknown-run tagged at LWG in April and May in same year as release, Detected as Adult at Lower Project 4/3-6/20
Reach	Year	Harmonic TT (days)	TT 90th Percentile (days)	Conversion Rate (no harvest adjustment)	MAD Middle 95% of run	Detected at Lower Project	Released Lower Snake 170601	Released Salmon 170602	Released Clearwater 170603	Released Upper Columbia 1702	Released Yakima 1703	Obs Date First	Obs Date 5 Pct	Obs Date 10 Pct	Obs Date 50 Pct	Obs Date 90 Pct	Obs Date 95 Pct
BON-LWG all reaches, snake only	Average	14.0	median 22.7 range 16.9 - 36.8	76.1	range 1.1 - 8.8	2201.6	30.0%	42.9%	27.1%	0.0%	0.0%
	2024	12.8	21.1	80.4	6.4	1236	22.7%	44.5%	32.8%			04/08	04/25	04/30	05/13	06/12	06/16
	2023	13.7	21.6	80.3	4.7	1331	15.4%	50.5%	34.1%			04/04	04/29	05/03	05/16	06/10	06/14
	2022	15.9	27.0	75.8	5.9	1871	17.5%	51.1%	31.3%			04/06	04/25	04/28	05/13	06/08	06/13
	2021	11.9	19.7	80.5	5.5	958	32.8%	51.4%	15.9%			04/07	04/28	04/30	05/15	06/11	06/16
	2020	15.2	24.0	77.0	4.8	677	39.0%	41.7%	19.4%			04/10	04/28	04/30	05/16	06/10	06/15
	2019	14.8	30.1	74.4	4.2	632	26.6%	46.8%	26.6%			04/06	04/30	05/02	05/13	06/07	06/13
	2018	14.8	24.1	72.7	6.3	946	18.1%	44.4%	37.5%			04/15	05/02	05/05	05/20	06/09	06/13
	2017	15.9	25.0	73.0	3.8	868	21.5%	43.3%	35.1%			04/07	05/04	05/05	05/23	06/09	06/14
	2016	11.8	19.5	76.9	4.5	1653	25.7%	42.8%	31.5%			04/03	04/22	04/29	05/11	06/08	06/12
	2015	11.3	16.9	72.5	6.0	3139	22.9%	46.0%	31.2%			04/03	04/17	04/19	05/09	06/11	06/16
	2014	13.1	20.7	74.8	3.5	2697	24.3%	44.4%	31.3%			04/03	04/20	04/24	05/09	06/10	06/14
	2013	12.1	19.0	83.3	3.0	1789	27.1%	40.6%	32.3%			04/03	04/24	04/26	05/10	06/12	06/16
	2012	13.4	21.7	75.1	2.2	2658	36.2%	31.5%	32.3%			04/09	04/23	04/26	05/12	06/07	06/14
	2011	17.5	36.8	70.1	2.2	4541	42.5%	33.4%	24.1%			04/03	04/27	04/30	05/12	06/12	06/16
	2010	14.1	21.7	74.2	1.7	6240	45.3%	39.9%	14.8%			04/03	04/15	04/17	05/06	06/08	06/15
	2009	12.4	19.6	80.7	1.1	4439	40.4%	42.5%	17.1%			04/03	04/26	05/01	05/17	06/13	06/16
	2008	15.3	24.2	76.1	1.4	3438	40.9%	34.8%	24.3%			04/03	04/19	04/26	05/13	06/12	06/16
	2007	13.4	23.7	80.9	4.3	1054	32.5%	44.6%	22.9%			04/04	04/20	04/25	05/15	06/12	06/17
	2006	16.1	30.1	71.9	8.8	698	31.9%	42.4%	25.6%			04/24	04/30	05/04	05/15	06/13	06/16
BON-MCN triple reach, snake only	Average	6.0	median 9.3 range 7.0 - 12.7	80.4	range 1.5 - 15.5	2202.1	30.0%	42.9%	27.1%	0.0%	0.0%
	2024	5.4	8.8	85.8	3.7	1236	22.7%	44.5%	32.8%			04/08	04/25	04/30	05/13	06/12	06/16
	2023	6.2	9.7	82.0	5.6	1331	15.4%	50.5%	34.1%			04/04	04/29	05/03	05/16	06/10	06/14
	2022	6.1	9.9	80.3	3.0	1871	17.5%	51.1%	31.3%			04/06	04/25	04/28	05/13	06/08	06/13
	2021	5.4	8.4	84.4	9.1	959	32.7%	51.4%	15.8%			04/07	04/28	04/30	05/15	06/11	06/16
	2020	6.1	9.1	80.8	15.5	677	39.0%	41.7%	19.4%			04/10	04/28	04/30	05/16	06/10	06/15
	2019	5.9	9.2	78.0	13.3	632	26.6%	46.8%	26.6%			04/06	04/30	05/02	05/13	06/07	06/13
	2018	6.5	10.0	76.2	8.2	946	18.1%	44.4%	37.5%			04/15	05/02	05/05	05/20	06/09	06/13
	2017	6.3	9.4	76.7	9.6	868	21.5%	43.3%	35.1%			04/07	05/04	05/05	05/23	06/09	06/14
	2016	5.4	8.6	81.4	8.6	1653	25.7%	42.8%	31.5%			04/03	04/22	04/29	05/11	06/08	06/12
	2015	4.9	7.0	77.7	1.8	3139	22.9%	46.0%	31.2%			04/03	04/17	04/19	05/09	06/11	06/16
	2014	5.8	8.9	77.9	6.2	2697	24.3%	44.4%	31.3%			04/03	04/20	04/24	05/09	06/10	06/14
	2013	5.6	9.0	86.7	10.3	1789	27.1%	40.6%	32.3%			04/03	04/24	04/26	05/10	06/12	06/16
	2012	6.4	9.9	80.3	4.7	2661	36.2%	31.5%	32.4%			04/09	04/23	04/26	05/12	06/07	06/14
	2011	6.8	12.1	76.6	1.6	4546	42.5%	33.3%	24.2%			04/03	04/27	04/30	05/12	06/12	06/15
	2010	5.5	8.6	79.0	1.5	6240	45.3%	39.9%	14.8%			04/03	04/15	04/17	05/05	06/08	06/15
	2009	5.7	8.9	85.0	3.4	4439	40.4%	42.5%	17.1%			04/03	04/26	05/01	05/17	06/13	06/16
	2008	6.6	12.1	79.3	2.7	3438	40.9%	34.8%	24.3%			04/03	04/19	04/26	05/13	06/12	06/16
	2007	5.9	10.2	86.1	4.2	1054	32.5%	44.6%	22.9%			04/04	04/20	04/25	05/15	06/12	06/17
	2006	6.9	12.7	79.4	6.3	698	31.9%	42.4%	25.6%			04/24	04/30	05/04	05/15	06/13	06/16
MCN-IHR, snake only	Average	1.8	median 3.75 range 2.3 - 6.1	96.4	range 1.1 - 7.0	1682.4	29.5%	42.9%	27.6%	0.0%	0.0%
	2024	1.8	3.4	94.3	3.6	1048	23.1%	43.7%	33.2%			04/18	05/01	05/06	05/17	06/14	06/17
	2023	1.9	5.0	94.9	5.4	1058	15.5%	52.2%	32.3%			04/09	05/08	05/14	05/26	06/15	06/18
	2022	2.1	6.1	95.2	2.8	1448	17.1%	51.6%	31.4%			04/05	05/01	05/03	05/17	06/10	06/15
	2021	1.5	2.3	98.3	4.3	786	30.7%	52.4%	16.9%			04/13	05/03	05/04	05/20	06/13	06/16
	2020	1.9	3.9	96.7	4.4	516	37.0%	42.6%	20.3%			04/20	05/03	05/06	05/20	06/12	06/16
	2019	1.7	3.0	98.4	2.8	487	26.7%	48.7%	24.6%			04/18	05/07	05/09	05/20	06/12	06/16
	2018	2.0	3.8	97.1	7.0	700	18.9%	42.6%	38.6%			05/02	05/10	05/12	05/27	06/13	06/16
	2017	2.0	4.0	95.7	4.9	646	22.0%	44.3%	33.7%			05/05	05/12	05/14	05/29	06/13	06/16
	2016	1.6	2.9	97.4	3.4	1299	26.8%	42.1%	31.1%			04/08	04/30	05/05	05/15	06/12	06/15
	2015	1.5	2.9	98.0	3.8	2429	22.1%	44.3%	33.6%			04/05	04/22	04/24	05/07	06/13	06/16
	2014	1.8	3.3	97.6	3.1	2014	23.7%	43.5%	32.7%			04/04	04/28	05/01	05/14	06/12	06/16
	2013	1.6	3.0	97.9	3.4	1457	26.6%	40.2%	33.2%			04/03	04/30	05/02	05/15	06/14	06/18
	2012	1.8	3.1	96.4	1.4	2077	35.7%	30.3%	33.9%			04/19	05/06	05/11	05/18	06/09	06/14
	2011	2.1	4.8	90.4	1.5	3197	39.0%	32.7%	28.3%			04/20	05/04	05/06	05/16	06/15	06/17
	2010	1.8	4.2	96.2	3.1	4738	45.6%	39.8%	14.6%			04/03	04/21	04/23	05/10	06/09	06/14
	2009	1.7	3.7	96.2	1.1	3564	39.3%	43.2%	17.5%			04/16	05/05	05/08	05/21	06/15	06/17
	2008	2.0	5.1	96.8	2.2	2502	40.7%	35.5%	23.9%			04/06	04/28	05/04	05/19	06/16	06/18
	2007	1.7	3.0	97.6	6.7	869	32.7%	43.3%	24.1%			04/18	04/29	05/02	05/18	06/13	06/17
	2006	1.9	3.8	94.8	4.8	496	30.4%	43.5%	26.0%			05/01	05/08	05/11	05/20	06/15	06/17
IHR-LMN	Average	1.4	median 2.5 range 2.0 - 5.7	98.5	range 1.4 - 6.3	1072.2	24.1%	45.8%	30.2%	0.0%	0.0%
	2024	1.5	4.1	98.4	5.1	973	22.7%	43.9%	33.4%			04/20	05/04	05/07	05/18	06/14	06/17
	2023	1.4	3.0	99.2	4.3	989	15.6%	52.1%	32.4%			04/18	05/11	05/16	05/30	06/15	06/18
	2022	1.9	5.7	96.9	1.4	1221	16.9%	48.2%	35.0%			04/07	05/03	05/04	05/17	06/07	06/09
	2021	1.2	2.1	99.9	3.7	754	30.5%	52.3%	17.2%			04/04	05/04	05/06	05/21	06/13	06/16
	2020	1.7	4.7	98.0	4.6	488	36.5%	42.6%	20.9%			04/22	05/04	05/07	05/24	06/13	06/15
	2019	1.2	2.2	98.7	5.1	474	27.6%	47.5%	24.9%			04/25	05/09	05/11	05/22	06/12	06/15
	2018	1.4	2.8	98.3	6.3	666	18.5%	42.5%	39.0%			05/03	05/12	05/14	05/28	06/13	06/17
	2017	1.5	3.1	97.5	4.2	611	22.4%	43.4%	34.2%			05/06	05/15	05/20	05/30	06/14	06/18
	2016	1.1	2.0	98.6	4.7	1252	27.1%	41.6%	31.3%			04/10	05/02	05/06	05/17	06/12	06/16
	2015	1.2	2.1	99.2	2.7	2327	22.0%	44.1%	33.9%			04/07	04/23	04/25	05/08	06/12	06/16
	2014	1.2	2.1	99.1	3.2	1940	23.6%	43.4%	33.1%			04/09	04/30	05/03	05/15	06/13	06/17
IHR-GOA double reach	Average	3.4	median 7.75 range 4.5 - 16.6	97.4	range 1.9 - 4.9	1061.0	24.0%	45.7%	30.3%	0.0%	0.0%
	2024	3.3	8.3	97.3	3.9	973	22.7%	43.9%	33.4%			04/20	05/04	05/07	05/18	06/14	06/17
	2023	3.1	7.0	98.7	4.5	989	15.6%	52.1%	32.4%			04/18	05/11	05/16	05/30	06/15	06/18
	2022	4.4	12.6	96.1	4.6	1221	16.9%	48.2%	35.0%			04/07	05/03	05/04	05/17	06/07	06/09
	2021	3.0	7.0	97.6	3.9	754	30.5%	52.3%	17.2%			04/04	05/04	05/06	05/21	06/13	06/16
	2020	4.2	9.9	96.5	3.8	488	36.5%	42.6%	20.9%			04/22	05/04	05/07	05/24	06/13	06/15
	2019	4.0	16.6	96.8	4.4	474	27.6%	47.5%	24.9%			04/25	05/09	05/11	05/22	06/12	06/15
	2018	3.5	8.5	97.4	4.9	666	18.5%	42.5%	39.0%			05/03	05/12	05/14	05/28	06/13	06/17
	2017	4.0	11.2	98.5	2.6	611	22.4%	43.4%	34.2%			05/06	05/15	05/20	05/30	06/14	06/18
	2016	2.6	5.2	97.7	3.8	1252	27.1%	41.6%	31.3%			04/10	05/02	05/06	05/17	06/12	06/16
	2015	2.5	4.5	96.7	1.9	2215	21.4%	43.5%	35.1%			04/07	04/23	04/25	05/06	06/06	06/13
	2014	3.0	6.5	98.4	3.3	1940	23.6%	43.4%	33.1%			04/09	04/30	05/03	05/15	06/13	06/17
IHR-LWG triple reach	Average	5.2	median 10.65 range 7.0 - 24.0	96.3	range 0.9 - 6.5	1579.8	29.5%	42.6%	27.9%	0.0%	0.0%
	2024	4.8	9.8	97.1	4.6	973	22.7%	43.9%	33.4%			04/20	05/04	05/07	05/18	06/14	06/17
	2023	4.5	9.0	98.6	4.8	989	15.6%	52.1%	32.4%			04/18	05/11	05/16	05/30	06/15	06/18
	2022	6.4	14.5	95.2	2.7	1221	16.9%	48.2%	35.0%			04/07	05/03	05/04	05/17	06/07	06/09
	2021	4.4	8.8	96.8	4.6	754	30.5%	52.3%	17.2%			04/04	05/04	05/06	05/21	06/13	06/16
	2020	6.2	12.4	95.9	4.1	488	36.5%	42.6%	20.9%			04/22	05/04	05/07	05/24	06/13	06/15
	2019	5.8	18.1	95.6	4.8	474	27.6%	47.5%	24.9%			04/25	05/09	05/11	05/22	06/12	06/15
	2018	5.3	10.8	96.8	6.5	666	18.5%	42.5%	39.0%			05/03	05/12	05/14	05/28	06/13	06/17
	2017	6.4	14.5	96.1	5.4	611	22.4%	43.4%	34.2%			05/06	05/15	05/20	05/30	06/14	06/18
	2016	4.1	7.7	96.8	4.0	1252	27.1%	41.6%	31.3%			04/10	05/02	05/06	05/17	06/12	06/16
	2015	4.3	7.6	96.7	4.1	2327	22.0%	44.1%	33.9%			04/07	04/23	04/25	05/08	06/12	06/16
	2014	4.7	9.0	97.9	3.5	1940	23.6%	43.4%	33.1%			04/09	04/30	05/03	05/15	06/13	06/17
	2013	4.3	7.0	98.0	1.6	1388	26.7%	39.7%	33.6%			04/06	05/02	05/04	05/16	06/14	06/17
	2012	4.5	8.1	96.2	0.9	1979	36.1%	30.0%	34.0%			04/21	05/08	05/12	05/20	06/10	06/15
	2011	6.6	24.0	93.3	2.4	2820	38.9%	33.2%	28.0%			04/04	05/06	05/07	05/18	06/16	06/18
	2010	5.4	11.9	96.1	1.7	4542	45.5%	39.9%	14.6%			04/04	04/22	04/26	05/12	06/14	06/17
	2009	4.3	7.3	96.1	1.7	3366	39.0%	43.2%	17.8%			04/18	05/06	05/09	05/22	06/15	06/18
	2008	5.3	10.9	97.2	4.5	2325	40.2%	34.9%	24.9%			04/08	04/30	05/06	05/20	06/15	06/18
	2007	4.8	10.5	94.9	3.4	840	32.4%	43.7%	23.9%			04/19	05/01	05/04	05/20	06/14	06/18
	2006	5.4	12.4	95.8	5.8	454	31.7%	44.1%	24.2%			04/27	05/10	05/12	05/27	06/16	06/18
LMN-LGS	Average	1.6	median 5.6 range 2.8 - 14.0	98.0	range 1.8 - 6.1	1035.9	23.7%	45.6%	30.7%	0.0%	0.0%
	2024	1.4	4.6	97.7	2.4	943	22.6%	43.6%	33.8%			04/06	05/07	05/10	05/19	06/15	06/17
	2023	1.4	3.8	99.2	3.4	993	15.2%	52.2%	32.6%			04/20	05/13	05/17	05/31	06/15	06/18
	2022	1.8	6.6	97.1	6.1	1156	16.9%	47.9%	35.2%			04/10	05/05	05/07	05/20	06/08	06/13
	2021	1.5	5.1	97.7	3.7	749	30.6%	51.9%	17.5%			04/07	05/05	05/07	05/22	06/13	06/17
	2020	1.9	6.1	97.3	3.4	482	36.9%	41.9%	21.2%			04/24	05/06	05/08	05/28	06/14	06/17
	2019	2.3	14.0	97.2	3.7	468	27.1%	47.9%	25.0%			04/28	05/10	05/12	05/24	06/13	06/16
	2018	1.7	6.2	97.7	4.2	645	18.4%	41.7%	39.8%			05/05	05/13	05/16	05/30	06/13	06/17
	2017	2.0	9.2	99.0	1.8	598	21.9%	43.5%	34.6%			05/08	05/16	05/21	06/01	06/15	06/18
	2016	1.2	3.3	98.0	3.0	1216	26.6%	41.9%	31.5%			04/12	05/04	05/07	05/18	06/12	06/16
	2015	1.2	2.8	98.3	3.9	2154	21.0%	43.1%	35.8%			04/04	04/24	04/27	05/07	06/06	06/12
	2014	1.5	4.1	98.6	2.3	1898	22.8%	43.6%	33.6%			04/12	05/02	05/04	05/16	06/12	06/17
LMN-LWG double reach	Average	3.4	median 7.85 range 5.8 - 16.4	97.1	range 2.5 - 5.5	1047.6	23.8%	45.6%	30.6%	0.0%	0.0%
	2024	2.9	6.0	97.5	3.2	943	22.6%	43.6%	33.8%			04/06	05/07	05/10	05/19	06/15	06/17
	2023	2.9	5.9	99.0	3.8	993	15.2%	52.2%	32.6%			04/20	05/13	05/17	05/31	06/15	06/18
	2022	3.8	9.0	96.1	4.1	1156	16.9%	47.9%	35.2%			04/10	05/05	05/07	05/20	06/08	06/13
	2021	2.9	6.9	97.1	4.2	749	30.6%	51.9%	17.5%			04/07	05/05	05/07	05/22	06/13	06/17
	2020	3.9	8.8	96.9	3.7	482	36.9%	41.9%	21.2%			04/24	05/06	05/08	05/28	06/14	06/17
	2019	4.2	16.4	95.5	3.9	468	27.1%	47.9%	25.0%			04/28	05/10	05/12	05/24	06/13	06/16
	2018	3.5	8.8	97.2	5.5	645	18.4%	41.7%	39.8%			05/05	05/13	05/16	05/30	06/13	06/17
	2017	4.3	11.9	96.5	4.1	598	21.9%	43.5%	34.6%			05/08	05/16	05/21	06/01	06/15	06/18
	2016	2.8	5.9	97.1	3.1	1216	26.6%	41.9%	31.5%			04/12	05/04	05/07	05/18	06/12	06/16
	2015	2.9	5.8	97.3	3.1	2271	21.8%	43.8%	34.5%			04/04	04/24	04/27	05/09	06/12	06/17
	2014	3.2	6.9	98.2	2.5	1898	22.8%	43.6%	33.6%			04/12	05/02	05/04	05/16	06/12	06/17
LGS-LWG	Average	1.4	median 2.6 range 1.9 - 3.5	98.8	range 1.3 - 5.0	982.3	23.4%	45.3%	31.4%	0.0%	0.0%
	2024	1.2	2.0	99.3	3.7	883	22.5%	43.5%	34.0%			04/08	05/09	05/12	05/20	06/15	06/19
	2023	1.2	1.9	99.3	4.3	946	14.9%	51.8%	33.3%			04/24	05/15	05/19	06/01	06/15	06/18
	2022	1.5	2.8	97.8	1.4	1102	17.0%	47.4%	35.7%			04/12	05/07	05/08	05/21	06/10	06/18
	2021	1.2	1.9	99.1	5.0	697	30.4%	51.9%	17.6%			04/10	05/07	05/09	05/22	06/14	06/17
	2020	1.5	2.4	98.9	3.3	455	35.4%	43.3%	21.3%			04/27	05/09	05/11	05/31	06/16	06/18
	2019	1.3	1.9	98.6	2.4	415	27.5%	45.5%	27.0%			05/01	05/12	05/14	05/29	06/15	06/17
	2018	1.4	2.4	99.5	5.0	583	17.7%	41.0%	41.3%			05/07	05/14	05/17	06/01	06/13	06/15
	2017	1.6	3.5	97.1	3.1	556	21.2%	44.1%	34.7%			05/10	05/19	05/23	06/06	06/16	06/18
	2016	1.4	2.8	99.0	2.8	1165	26.4%	41.4%	32.2%			04/13	05/06	05/08	05/19	06/12	06/16
	2015	1.5	3.2	99.2	1.5	2108	21.0%	43.1%	36.0%			04/08	04/26	04/28	05/10	06/07	06/12
	2014	1.4	2.8	99.5	1.3	1796	22.2%	43.2%	34.6%			04/14	05/04	05/06	05/17	06/11	06/16
